The Segment integration ingests product-usage events into Zudo as a webhook destination. Events flow into account timelines, daily counts charts, Indicators, and (optionally) health scores — without writing custom code.
This integration is org-level. Connections are scoped to your organization and managed by an owner. If you don’t see Add Connection, ask your org owner to set this up.

​
Before you start

You’ll need:
  • An owner role in your Zudo organization
  • A Segment workspace with at least one source (e.g. JavaScript, Node.js, mobile SDK) sending Track events
  • An idea of which event names matter to your customer-success team — login, feature usage, billing, etc. Zudo only rolls up events on an allowlist, so a tight list keeps cost and noise down.

​
How it works

  1. Zudo gives you a unique webhook URL and a shared secret.
  2. You add a Webhook destination in Segment that posts events to that URL, signed with the shared secret.
  3. Segment delivers each event in real time.
  4. Zudo verifies the HMAC signature, archives the raw event to S3, and inserts a row into the staging table.
  5. Every 10 minutes a job aggregates allowlisted events into per-account daily rollups and resolves which Zudo account each event belongs to.
The webhook hot path is intentionally fast (under 100ms p50) — heavy work happens in the background.

​
Connect

1

Create the Connection in Zudo

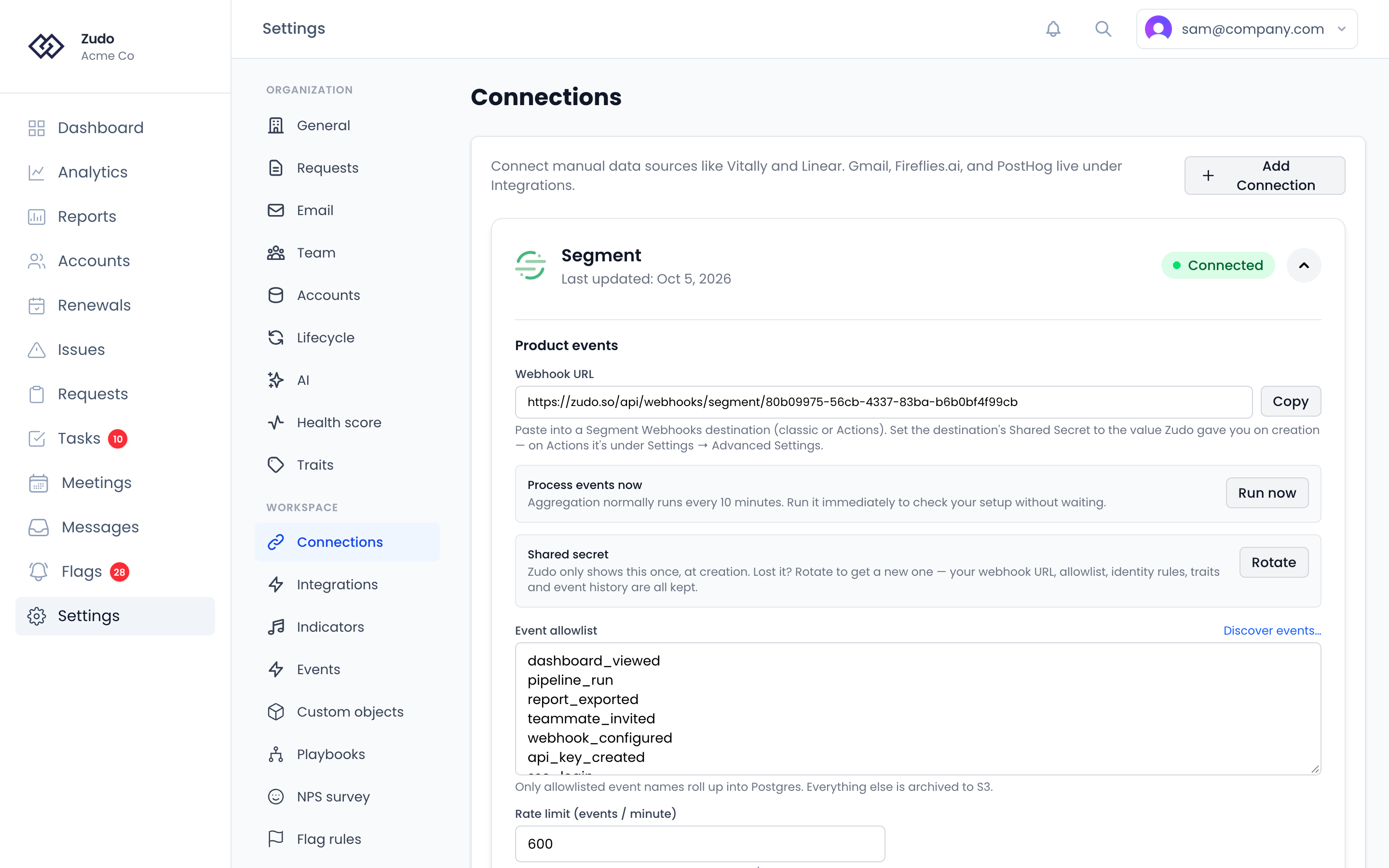

Go to Settings → Connections, click Add Connection, and select Segment (product events). Click Create Connection — Zudo generates the webhook URL and shared secret automatically.
2

Copy the webhook URL and shared secret

The next screen shows both values once. Copy them now — Zudo will not show the secret again. If you lose it, you can delete the connection and recreate it.
3

Add the Webhook destination in Segment

In your Segment workspace:
  1. Open Connections → Destinations and click Add Destination.
  2. Search for Webhooks (the classic destination, not “Webhook (Actions)”).
  3. Choose the source you want events to flow from and click Next.
  4. Name the destination something memorable like Zudo Product Events.
On the destination’s Settings tab:
  1. Under Webhook URLs, paste the URL Zudo gave you.
  2. Under Shared Secret, paste the secret Zudo gave you. This tells Segment to sign each request as X-Signature: HMAC-SHA1(body, secret).
  3. Save.
4

Enable the destination

Toggle the destination on. Segment starts delivering events immediately.
5

Configure the allowlist back in Zudo

Go back to Settings → Connections and expand the new Segment connection. Under Event allowlist, list the event names you want rolled up — one per line. Anything outside the allowlist is still archived to S3 (replayable later) but won’t appear in rollups, indicators, or health scores.
6

Configure identity rules (optional)

Expand Identity rules to control how events resolve to Zudo accounts and contacts. The defaults work for most setups — see Identity rules below if you need to customize.
7

Verify

Trigger a test event from your app (or use Segment’s Event Tester). Within ~10 minutes you’ll see daily counts on account pages, and recent events appear in the activity timeline under the Events filter.

​
What flows in

Zudo accepts every Segment call type but treats them differently:
Call typeCaptured event nameUsed for
Trackbody.event (e.g. Item Viewed, Login)Rollups + indicators (when the event is in your allowlist)
Group$groupIdentity resolution (binds users to accounts via groupId)
Identify$identifyIdentity resolution (binds users to email / external user id)
Page$pageSame as Track if allowlisted
Screen$screenSame as Track if allowlisted
The full payload is preserved on every event, so you can replay raw S3 archives if you ever change which events you want rolled up.

​
Identity rules

When a Segment event arrives, Zudo runs an ordered chain of strategies to figure out which Zudo Account (and optionally Contact) the event belongs to. The first match wins. The default chain works for most orgs and looks like this:
  • Account chain:
    1. Match groupId against Account.externalId (the canonical external identifier you’ve stamped on the account in Zudo)
    2. Match groupId against Account.psId (your existing internal account id)
    3. Match groupId against Account.vitallyId (if you’ve also got Vitally synced)
  • Contact chain (used when no account match was found):
    1. Match userId against Contact.productExternalUserId
    2. Match email against Contact.email
If neither chain hits, the event is still archived and rolled up — just attached to a null accountId. Once you map the right ID onto the account, use Reconcile on the connection card to back-fill.

​
Customize

In the connection’s Identity rules section you can:
  • Reorder strategies with ↑ / ↓
  • Remove unused strategies with ✕
  • Add strategies for new sources (e.g. from: payload:properties.account_uuid to match an arbitrary path inside the event payload)
  • Match against a custom trait value — useful when your customer’s account id is stored as a Vitally trait or a Zudo user-defined trait
Strategies are tried in the order shown. Put the most-specific match first so unique IDs win over fuzzy email matching.

​
Volume and cost controls

The rate limit field on the connection card caps the number of events per minute Zudo will accept from your org. Default is 600/min (~864K events/day). Events over the cap return 429 to Segment, which retries them with backoff. Raise or lower this based on your contract. The event allowlist is the biggest cost lever — only allowlisted events enter Postgres. Everything is archived to S3 regardless.

​
Troubleshooting

1

Events not arriving

Open your Segment destination’s Event Delivery tab. If you see 401 responses, the shared secret in Segment doesn’t match what Zudo has on file. Recreate the connection in Zudo and update Segment’s Shared Secret.
2

Events arriving but no rollups

Check the connection’s Recent events debug list. If inAllowlist is false for your test events, add them to the allowlist. Rollups appear after the next aggregation run (every 10 minutes).
3

Events showing on the wrong account or no account

Identity resolution didn’t match. Open the recent events list — the externalGroupId and externalUserId fields show exactly what Segment sent. Make sure the value matches one of the strategies in your Identity rules. Either correct the data in Segment’s Group/Identify calls, or add a strategy that matches what’s already there (for example a payload:properties.account_uuid strategy).
4

Rate-limit (429) responses

Segment retries 429s with backoff, so events aren’t lost in normal traffic spikes. If you see sustained 429s, raise the Rate limit on the connection or tighten the allowlist so fewer events count toward the cap.
